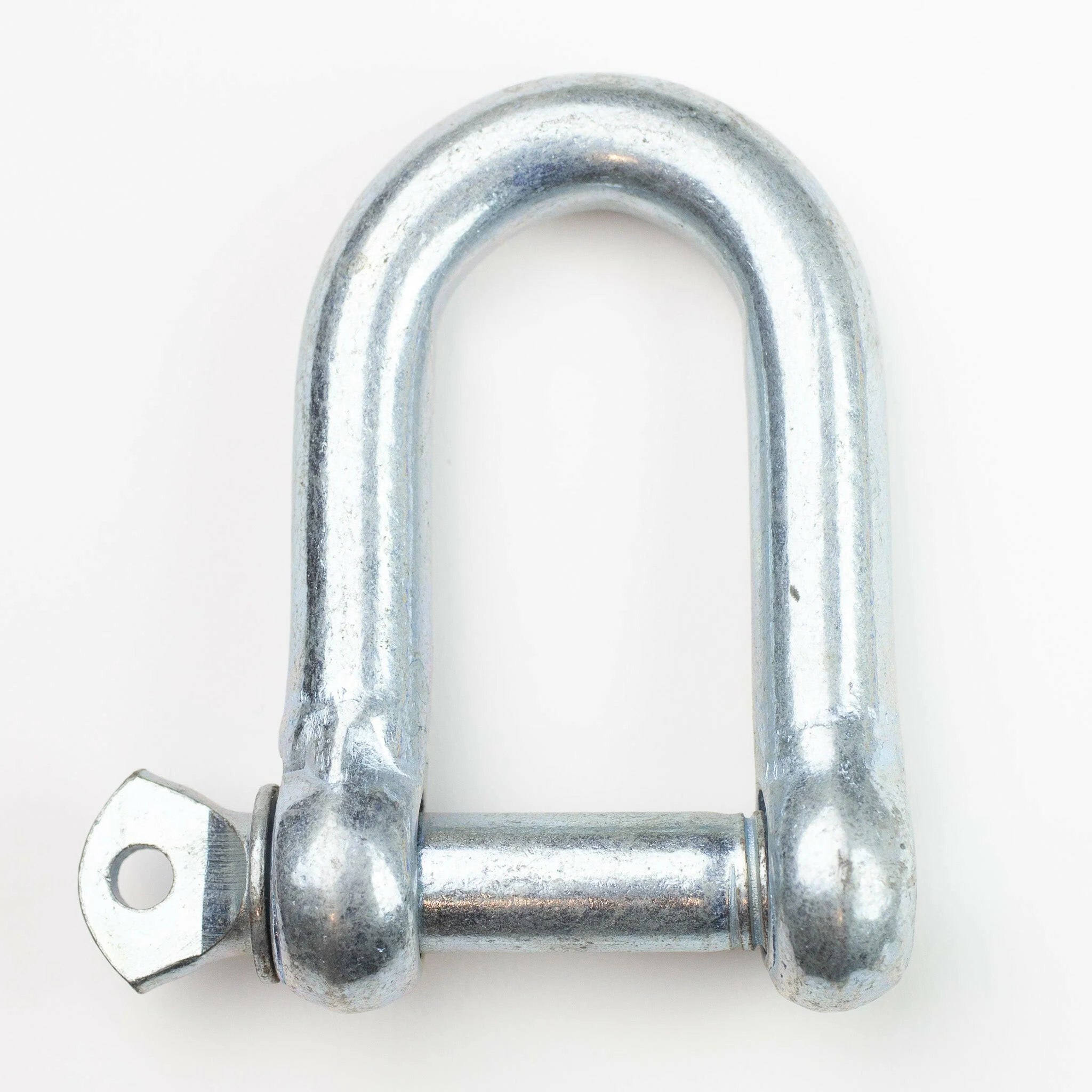

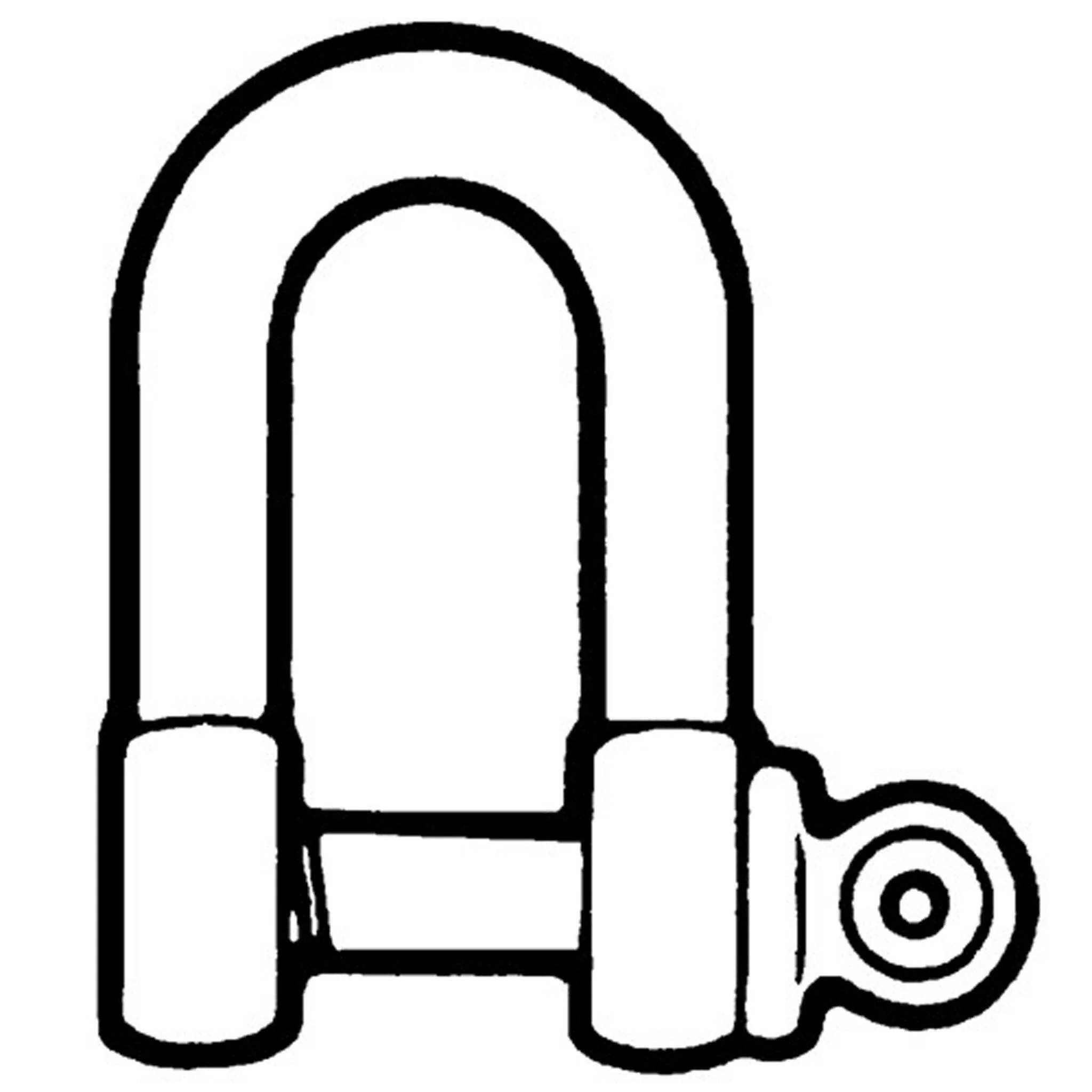

D Shackle Galvanised Steel

An economical general purpose D-shackle. Not to be used for lifting purposes.

Note:

These shackles are bright zinc plated and not hot dipped galvanised. We would not recommend them for salt water marine use.

Pin Diameter	Interior Length to Pin Centre	Jaw Width
5 mm	20 mm	10 mm
6 mm	27 mm	14 mm
8 mm	35 mm	17 mm
10 mm	43 mm	18 mm
12 mm	53 mm	27 mm
16 mm	74 mm	34 mm
20 mm	86 mm	38 mm
